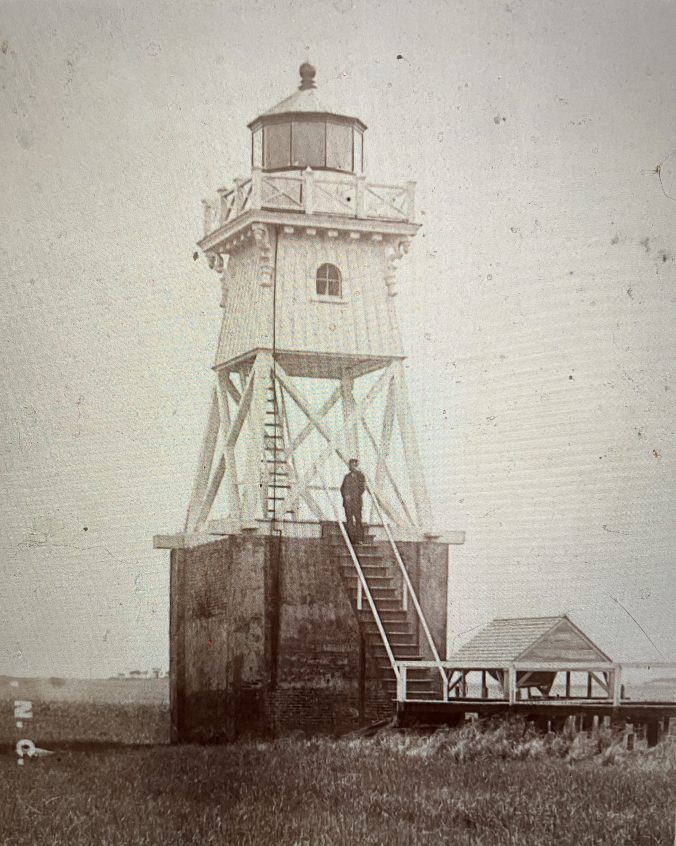

Oak Island Range Light (Rear), Oak Island, N.C., 1893. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45698270)

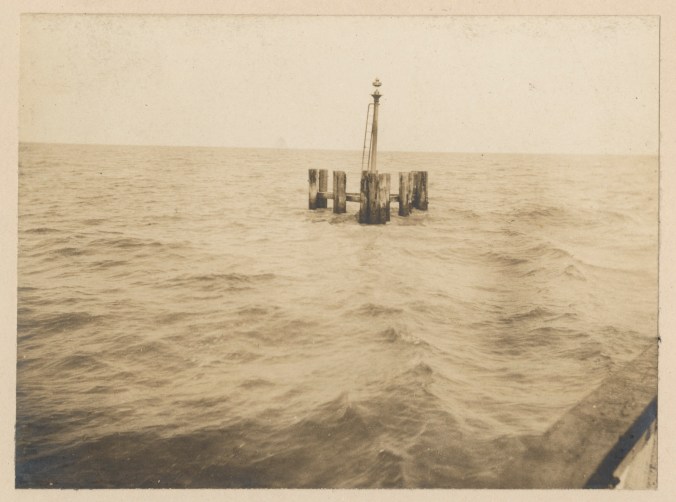

Reeds Point Light, just off the mainland of Dare County, west of Roanoke Island, ca. 1890-1915. By most accounts, the history of navigation aids in the U.S. began with the construction of the Boston Light on Little Brewster Island in 1716. Records of buoys and beacons in colonial America are notoriously sparse, though. According to Amy K. Marshall’s A History of Buoys and Tenders, there are records of cask buoys in the Delaware River in 1767 and of spar buoys in Boston Harbor as early as 1780, but not much else. I suspect that there were at least some local buoys and beacons, and perhaps a great many, on North Carolina waters by that time as well, but the earliest I have found were wooden slats positioned to mark a channel on the Cape Fear River, below Wilmington, in the 1790s. The framework for a more national system of navigational aids in the U.S. began to take shape around that same time. Soon after Independence, the First Congress passed an An act for the establishment and support of light-houses, beacons, buoys, and public piers that placed the responsibility for navigational aides under the authority of the Treasury Department. Navigational aids continued to have a largely local character, and often differed widely from place to place, however, until 1848, when the U.S. Congress adopted a system of buoyage with uniform shapes, colors, and numbering– the so-called Lateral System, that, with some minor modifications, is still in use today. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694471)

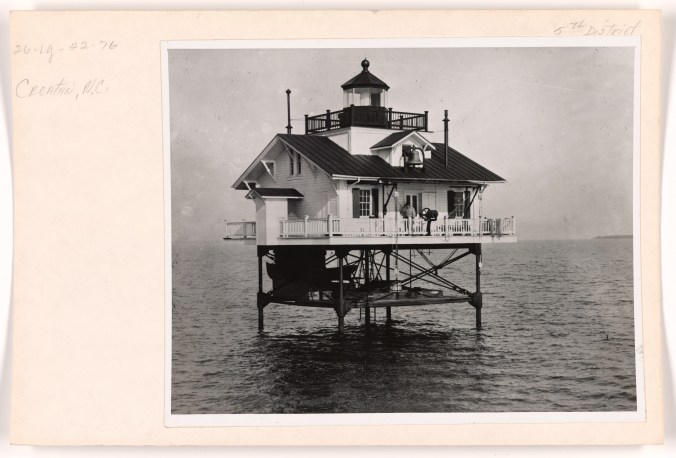

Croatan Lighthouse, in the channel between Croatan Sound and Albemarle Sound, 1914. As that time, the Croatan Light was one of 14 manned lighthouses built on piles on North Carolina waters. The Wade Point, North River, Laurel Point, and Roanoke River lighthouses all stood on the Albemarle Sound or at the mouth of its tributaries. The Long Shoal, Hatteras Inlet, Bluff Shoal, Gull Shoal, Brant Island, Southwest Point Royal Shoal, and Pamlico Point lighthouses were all located on Pamlico Sound. The Croatan Lighthouse, seen here, was  northwest of Roanoke Island. Another lighthouse, the Harbor Island Light, was located at the entrance to Core Sound, not far from Portsmouth Island, and the Neuse River Lighthouse stood off Piney Point at the entrance to the Neuse River. According to the U.S. Coast Guard Historian’s Office, the Croatan Lighthouse had a Fourth Order Fresnal Lens, as well as a fog bell that struck every 15 seconds when in use. Photo source:  Records of the U.S. Coast Guard, (RG 23), National Archives- College Park- (#45693945)

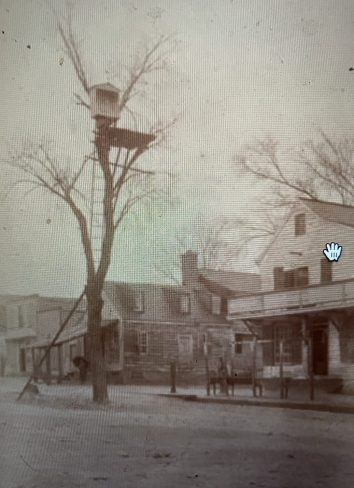

Edenton, N.C., ca. 1890-1920. This might be my favorite photograph of a U.S. Lighthouse Service navigational aid on the N.C. coast. It’s a rather jerry-rigged back range light situated in a tree in downtown Edenton. A front range light is evidently somewhere out in Edenton Harbor. The front and back range lights worked together: when aligned visually, one directly behind the other, range lights indicated the route of safe passage on a river or other body of water– in this case, Edenton Harbor. To be seen properly, the back range light had to be at least somewhat elevated above the front light, which in this case was achieved with nature’s help. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park

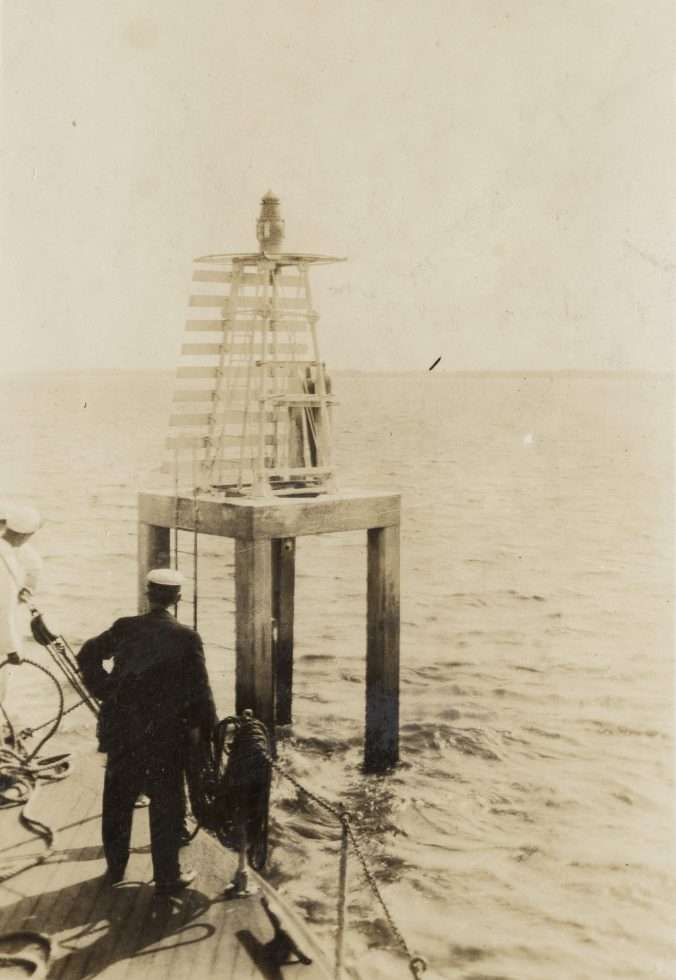

In this photograph, we see the U.S. Lighthouse Service tender Palmetto approaching the range light that marked Upper Midnight Channel on the Lower Cape Fear River, May 1917. Debbie Mollycheck, who is the authority on the history of the Cape Fear river lights, recently told me that this photograph was probably taken during the Palmetto’s first inspection tour of the Lower Cape Fear. (The Palmetto had just recently been commissioned a shallow water tender.) Ms. Mollycheck also informed me that the gentleman with his hands on his hips was the Palmetto’s master, Emil F. Redell. An attorney by trade, Ms. Mollycheck is the granddaughter of Franto Mollycheck II, a later keeper of the Cape Fear river lights. She has done extensive research on the river’s light keepers and is currently writing a history of those keepers and of the 6th Lighthouse District as a whole. You can learn more about her work here.  Photograph source: Records of the U.S. Coast Guard (RG 26), National Archives-College Park (#45697828)

This photo, also dated May 1917, shows Cape Fear River light keeper Henry Berry pulling his keeper’s boat alongside the light for Snow Marsh Channel and Reeves Point Channel. According to Debbie Mollycheck, Berry was an African American waterman who was born into slavery in Brunswick County, N.C., ca. 1855. Her research has shown that Berry had been tending lights on the Lower Cape Fear since 1885. At the time of this photograph, he had the day-in and day-out responsibility for maintaining the lights along a 14-mile section of the river from Upper Lilliput Channel to the Atlantic. This photograph was taken on the same inspection tour of the Lower Cape Fear that I referenced in the photograph above. Keeper Berry was presumably guiding Capt. Redell and the Palmetto’s crew on the tour, with his boat being towed by the Palmetto and used when they needed to reach navigational aids on sections of the river too shallow for the Palmetto. (You can learn more about Ms. Mollycheck’s research here, and I am hoping that I will be able to share more of her research on Henry Berry here sometime soon.) Photo source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45697830)

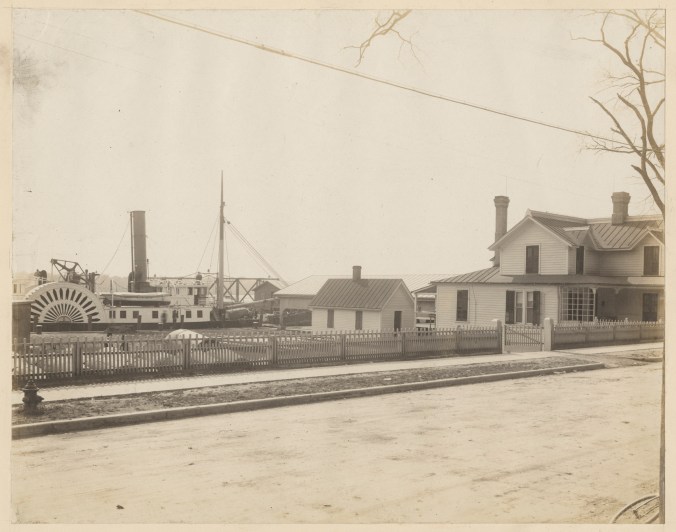

This is a rare portrait of the U.S. Lighthouse Service buoy depot in Washington, N.C., March 1914. The depot was one of 3 or 4 in the USLS’s 5th District, which extended from the Delaware coast to New Inlet, on the central part of the North Carolina coast. At this site, USLS personnel stored and maintained– painted, rebuilt, sometimes assembled– the buoys and beacons that were used throughout much of the North Carolina coast. The depot was just below the town’s bridge across the Pamlico River, where its wharf was a popular, if apparently illicit swim spot for local kids. On the righthand side of this photograph, we can see the depot keeper’s house. (In 1914, the keeper was Capt. T. F. Smith, a USLS veteran who had previously been keeper of the Cape Hatteras Light for 19 years and the Ocracoke Light for 12 years.) On the left, a side wheel steamer is docked on the Pamlico. I can’t be sure– no USLS tender was ever based at the depot– but the steamer looks a lot like the USLHT Jessamine. Source: Records of the U.S. Coast Guard (RG 26), National Archives-College Park (#45694881)

Close-up of can buoys and beacon posts at the U.S. Lighthouse Service’s buoy depot in Washington, N.C., March 1914. The USLS used several different kinds of buoys to mark the locations of channels, to warn of shoals and other dangers, and in some cases to indicate anchorage grounds. Built of iron or steel plates and weighing anywhere from 700 to over 8,000 pounds, buoys such as these were moored to the bottom by a heavy chain attached to a concrete block, stone or cast-iron sinker. A cast-iron ballast ball, tethered directly below the buoy, kept them steady in rough seas and high winds. Pilots could navigate in and out of a harbor, up or down a river or through another other kind of channel by eyeing the colors, numbers, and shapes of the buoys. The maintenance and replacement of buoys was one of the USLB and USLS’s most important jobs, and a never ending one. As the USLS’s annual report for 1915 said, “buoys are liable to be carried away, dragged, capsized, or sunk, as a result of ice or storm action, collision, and other accidents…, [but]  great effort is made … to maintain them on station in an efficient condition, which frequently requires strenuous and hazardous exertions on the part of the vessels charged with this duty.” Source of photo: Records of the U.S. Coast Guard (RG 26), NA-College Park (#45694877)

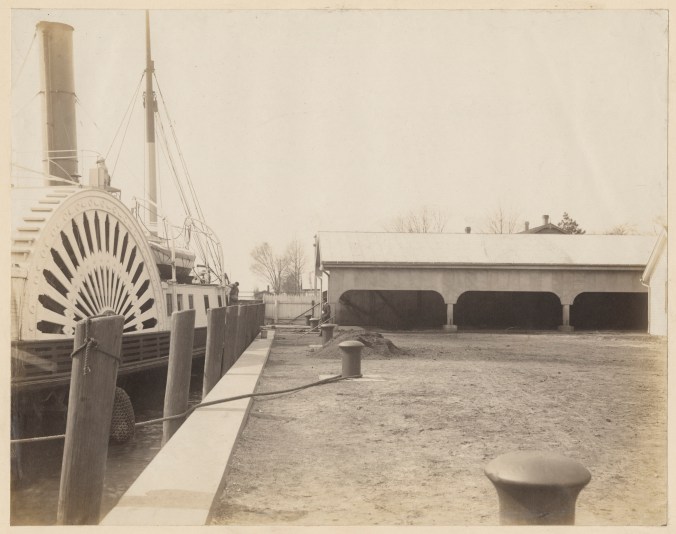

Another view of what I believe is the USLS paddlewheel tender Jessamine tied up at the buoy depot in Washington, N.C., March 1914. Built at the Malster & Reaney shipyard in Baltimore in 1881, the Jessamine was based at the 5th Lighthouse District’s headquarters in Baltimore but her crew built and maintained lighthouses and tended buoys and other navigational aides across much of the North Carolina coast. Like all USLS tenders, she was a tough, seaworthy vessel, constructed with a hull, deck framing, and the rest of her superstructure having “a large reserve of strength,” to quote a 1915 USLS report. Lighthouse tenders had to be capable of handling violent storms on the open ocean, as well as to navigate along shoals where shallow draft and a solid hull, capable of putting up with accidental groundings, was required. Note the Jessamine’s forward mast, which doubled as a derrick for construction work and for hoisting and lowering buoys. The Jessamine was not, by the way, the only USLS tender with a botanical name. Since 1867, the USLS had named its lighthouse tenders after trees, flowers, or other plants, generally ones native to the area where a tender operated. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694879)

The Garbacon Shoal Light Station, Neuse River SE of Oriental, March 1918. The beacon in this photograph was a temporary replacement for a slatted, 3-pile structure that was crushed by ice in the great freeze of December 1917-January 1918.  That cold spell devastated both USLS navigational aids and a great deal of maritime infrastructure. The ice cut away wharves and piers, took out beacons, and severely damaged at least two lighthouses– one, the North River Lighthouse, was washed off its foundation after ice shattered its pilings. A buildup of ice also knocked askew the Norfolk & Southern’s railroad bridge across the Albemarle Sound. According to the Daily Advance in Elizabeth City (25 Jan. 1918), the weight of the ice  made the bridge “as crooked as a snake” and a 1,000 ft.+ section of the track fell into the Albemarle. Boats of all kinds were frozen in the ice; some, like the U.S. Coast Survey’s Matchless, were sunk. With no freight boats running, mail and other supplies did not reach Roanoke Island and a large section of the Outer Banks for 3-4 weeks. When the ice finally broke up, USLS crews had their hands full replacing and repairing buoys, beacons, and other navigational aids. A freeze that bad was unusual, but losing navigational aids to storms was not and kept the USLS busy. Only a few years earlier, for instance, a 1913 hurricane destroyed 20 post lights on Pamlico and Albemarle Sound, washed out many government wharves and outbuildings, and did serious damage both to the buoy station in Washington, N.C., and to 9 light stations from Ocracoke Island to Pamlico Point. (Washington Progress, 13 Oct. 1913). Photo source:  U.S. Coast Guard Records (RG 26), National Archives- College Park

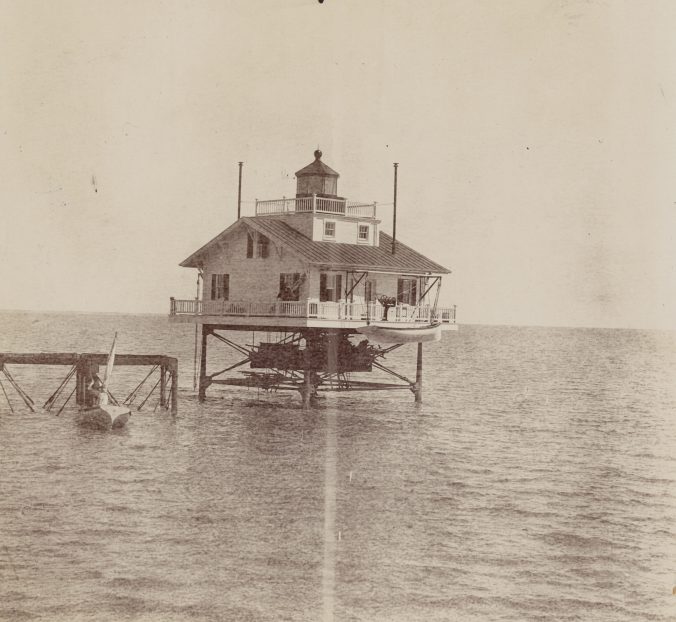

The Wade Point Light Station, at the mouth of the Pasquotank River, was another lighthouse damaged in the great freeze of 1917-18. A screw-pile structure, the light was originally built in 1855 but was rebuilt at least once and maybe twice after Confederate guerrillas burned the superstructure during the Civil War. It was rebuilt again in the 1890s.  The station’s light and 26 x 26 cottage rested on 5 metal pilings roughly 12 ft. above the water. During the freeze, a buildup of ice  pushed the pilings to one side and left the superstructure in danger until repairs could be made to stabilize the foundation. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park

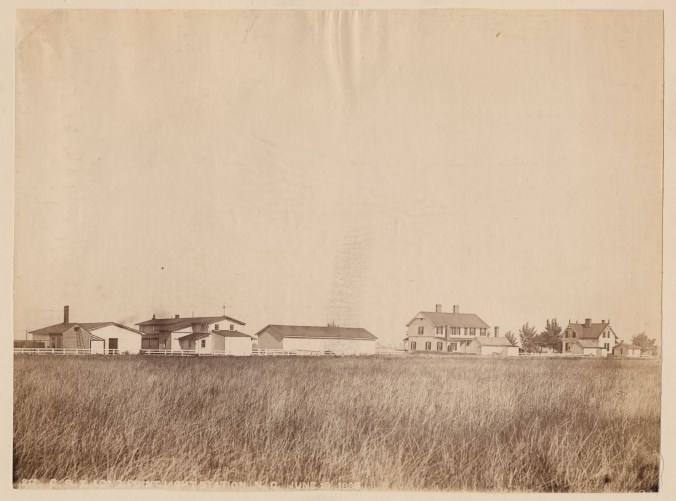

This is a view of Long Point Light Station, June 1893. Located on a marshy island on Currituck Sound, just north of Waterlily, the complex had the special function of manufacturing the compressed gas used in light buoys on most of the North Carolina coast. (More on that in a bit.) On the lefthand side of the photograph, we can see the gas works, including the brick retort house (for compressing the gas), a warehouse, a boathouse, and a coal shed.  On the righthand side of the photograph, we can see a 2-story house for the station’s assistant keepers and their families, as well as the principal keeper’s cottage.  According to a splendid article by Meghan Agresto (“A Brief History of Currituck Beach Light Station’s Smaller Keeper’s Dwelling”), the U.S. Lighthouse Board established Long Point Light Station in 1879 and the principal keeper at the time of this photograph was a  veteran of the agency named William Shinault. In her article, Ms. Agresto notes that the gas works shut down in 1914 and a few years later, in 1920, the principal lightkeeper’s cottage was floated across Currituck Sound to the Currituck Beach Light Station, where it can still be seen today (and where Ms. Agresto is the site manager). Photo source: Records of the U.S. Coast Guard (RG 26), National Archives-College Park (#45694157)

This is a view of the Long Point Light Station from the opposite side– from the USLS tender Jessamine on Currituck Sound. Left to right, we see the assistant keepers’ quarters (in the far trees), then the station’s gas works and boathouse, then a brick cistern for storing gas, and finally the gas work’s retort house. Another cistern and a coal shed is located on the far side of the gas works, but can’t be seen from this view. The tall pole by the station’s gas plant is a light beacon– Long Point Beacon Light #8. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694207)

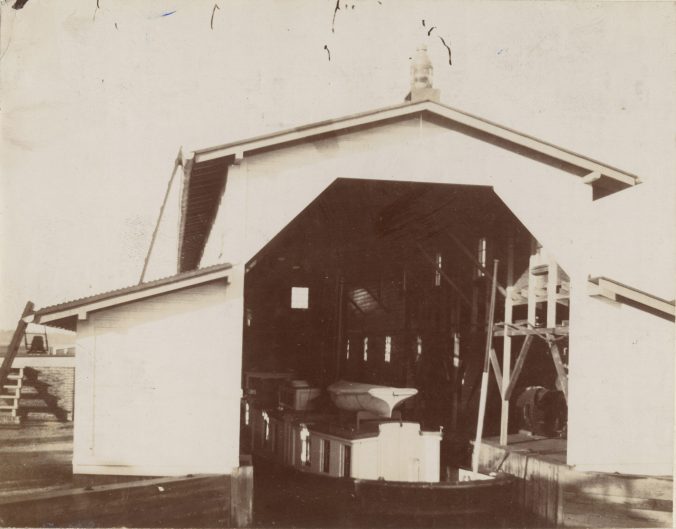

In this photograph, we can see the keeper’s boat resting in the boathouse at the Long Point Light Station. Source: Records of the U.S. Coast Guard (RG 26), NA-College Park

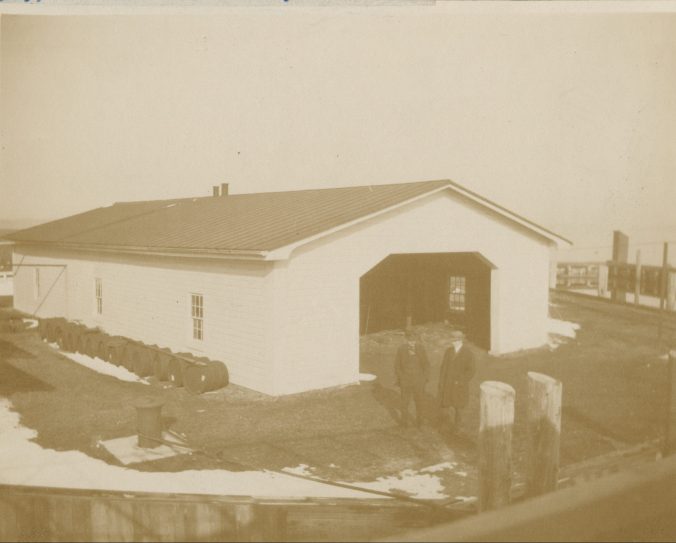

This is a view looking down from the USLS tender Jessamine at the gas plant that was located at the Long Point Light Station , March 1893. Established in 1879, the station ran the gas plant in order to make the compressed gas that was used to light buoys throughout that part of the North Carolina coast. At that time, the technology was still quite new. The country’s first gas buoy had only been deployed 12 years earlier, in 1881– that was at the entrance to New York Bay.  Gaslit buoys were the wave of the future however. By 1915, the USLS had more than 500 gas buoys in operation. By then, all of the USLS’s lighted buoys utilized compressed gas, either oil gas or acetylene. USLS personnel deployed the gas buoys widely to mark the the entrances of rivers, inlets, and canals, as well as to signal shoals, jetties, and other dangers, as well as the paths of channels. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694195)

Long Point Island, June 1893. The brick building on the right is the Long Point Light Station’s retort house, where special equipment distilled and compressed the oil gas that was used in the region’s USLB light buoys. On the left, we can see one of the two  brick cisterns that were used for storing the gas. The rest of the gas works is in the background. According to research by Currituck Sound teacher and historian (and my friend) Barbara Snowden, the resulting gas was what was typically called at the time “Pintsch gas.” Named after its inventor, a German tinsmith and manufacturer named Carl Friedrich Julius Pintsch, it was a compressed fuel gas created from distilled naphtha. Pintsch’s firm pioneered its use in buoys in the 1870s, and the USLS used the gas extensively in buoys and other lighted navigational aides through the First World War, when it was largely replaced by acetylene. Widely used in railroad cars as well, “Pintsch gas” could often light a buoy for a couple months or longer without refilling. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694169)

Telescopic view of the Bald Head Light Station from the waters off Bald Head Island, November 1896. Originally built in 1817, the lighthouse was long a welcome sight to mariners at the entrance to the Cape Fear River. In July 1834, Capt. Henry D. Hunter of the revenue cutter Tanker described the Light as having 15 lamps, being 109 feet above the level of the sea, and showing a fixed light. On an inspection tour two years later, he reported, “The keeper is an old Revolutionary [War] soldier and is unable from sickness to give the lighthouse his constant personal attention. The light, however, shows well from a distance.” Source of quote: U.S. Coast Guard Historian’s Office.  Source of Photograph: Records of the U.S. Coast Guard (RG 26), National Archives-College Park

The Keeper’s House at the Ocracoke Light Station, May 1893. You can’t see it in this photograph, but the Ocracoke Lighthouse, built in 1823, is just a few feet to the north. I would expect that the three individuals in the photo are the light station’s keeper at that time, Enoch Ellis Howard, his wife Cordelia, and one of their daughters or granddaughters. According to Ellen Cloud’s book, Ocracoke Lighthouse, Enoch Ellis Howard was born on Ocracoke in 1833, became keeper of the light during the Civil War, and died while still serving as the Light Station’s keeper in 1897. He was one of many Ocracoke Howards who made their livings following the sea one way or the other– as ship’s pilots, mariners, coast guardsmen, and in other maritime trades (including, some say, one who was a member of Blackbeard’s crew in the early 1700s). Phillip Howard’s Village Craftsmen Journal is a wonderful place to learn more about the history of the Howard family on Ocracoke, as well as much else about the island’s history. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694287)

A keeper standing next to the Oak Island Range Light (front light), 1894. As I mentioned earlier, range lights are a pair of lit beacons placed some distance from one another, with the back light elevated higher than the front light. By lining  up the two beacons, ship pilots could identify the channel that would afford safe passage through shallow or dangerous waters. They are sometimes used to fix position as well. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45698276)

The Little River Inlet Beacon, July 1914. In addition to lighted navigational aids, the U.S. Lighthouse Service also built and maintained thousands of navigational aids that were not lighted– so-called “daymarks” that were only meant to be visible from sunrise to sunset. This 32-ft. high structure, for instance, helped pilots get their bearings at the Little River Inlet, roughly 50 miles south of Wilmington. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45698196)

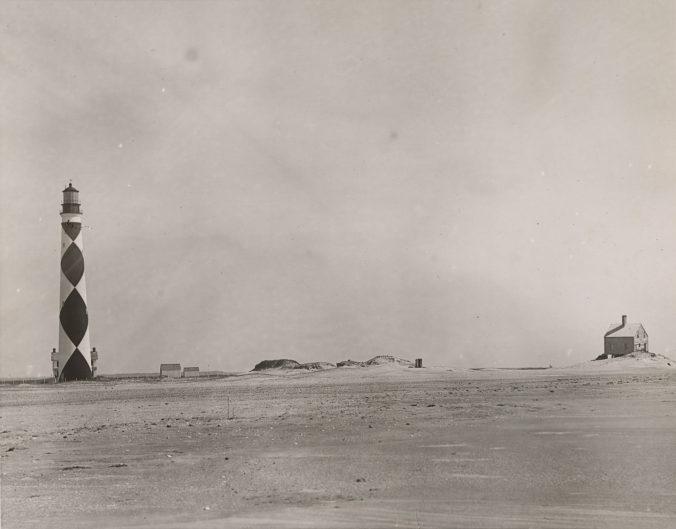

Cape Lookout Light Station, 1889. I don’t know if I’ve seen a photograph that better captures the austere beauty of the Cape in that day and time. The building on the far right is the original Keeper’s Quarters, built in 1812 and apparently abandoned by this point in time. On both sides of the lighthouse’s base, we can just glimpse the two chimneys of the second Keeper’s Quarters, built in 1873. The two outbuildings to the right of the lighthouse are an oil house and perhaps a coal shed or other storage building. Source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park

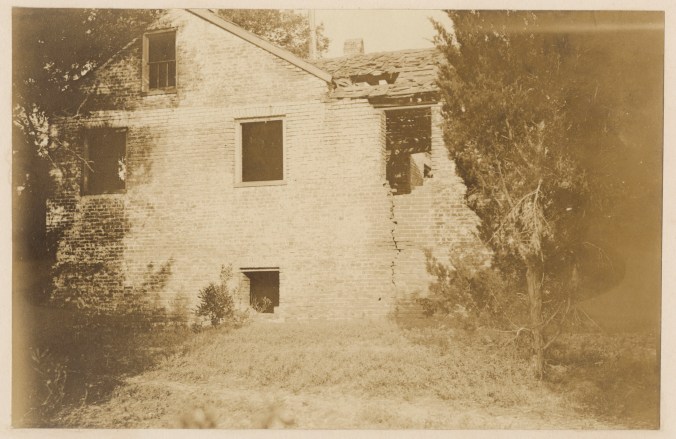

These are the ruins of the keeper’s dwelling at the Price’s Creek Light Station on the Cape Fear River, just upriver of Southport, June 1917. Built in 1849, the brick dwelling had a wooden lantern that served as one of the range lights that guided vessels through the river’s ship channel. This structure has since been destroyed by storms, but the ruins of the second range light at Price Creek, a squat 20-ft. high brick tower, have survived and can be easily seen from the Southport-Ft. Fisher Ferry. Photo source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park. (#45694445)

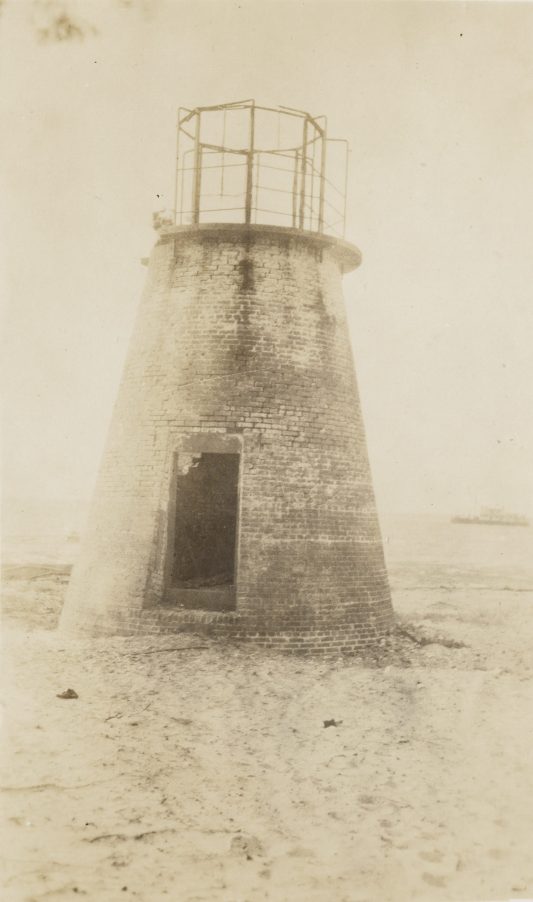

This is a 1917 view of the ruins of the surviving range light on that part of the Cape Fear River– the Price’s Creek Front Range Light, with the USLS tender Palmetto in the distance. Built in 1849 and activated in 1850, the two Price’s Creek lights were part of an extensive system of navigational aids that guided ships from the mouth of the Cape Fear to Wilmington. In a way, they were silent witnesses to all that happened on the Cape Fear, from the passage of Confederate blockade runners during the Civil War to the flight of fugitive slaves who concealed themselves in ships bound for the sea. Photo source: Records of the U.S. Coast Guard (RG 26), National Archives- College Park (#45694439)
